Here are several actual photos of TV Box itself and package.

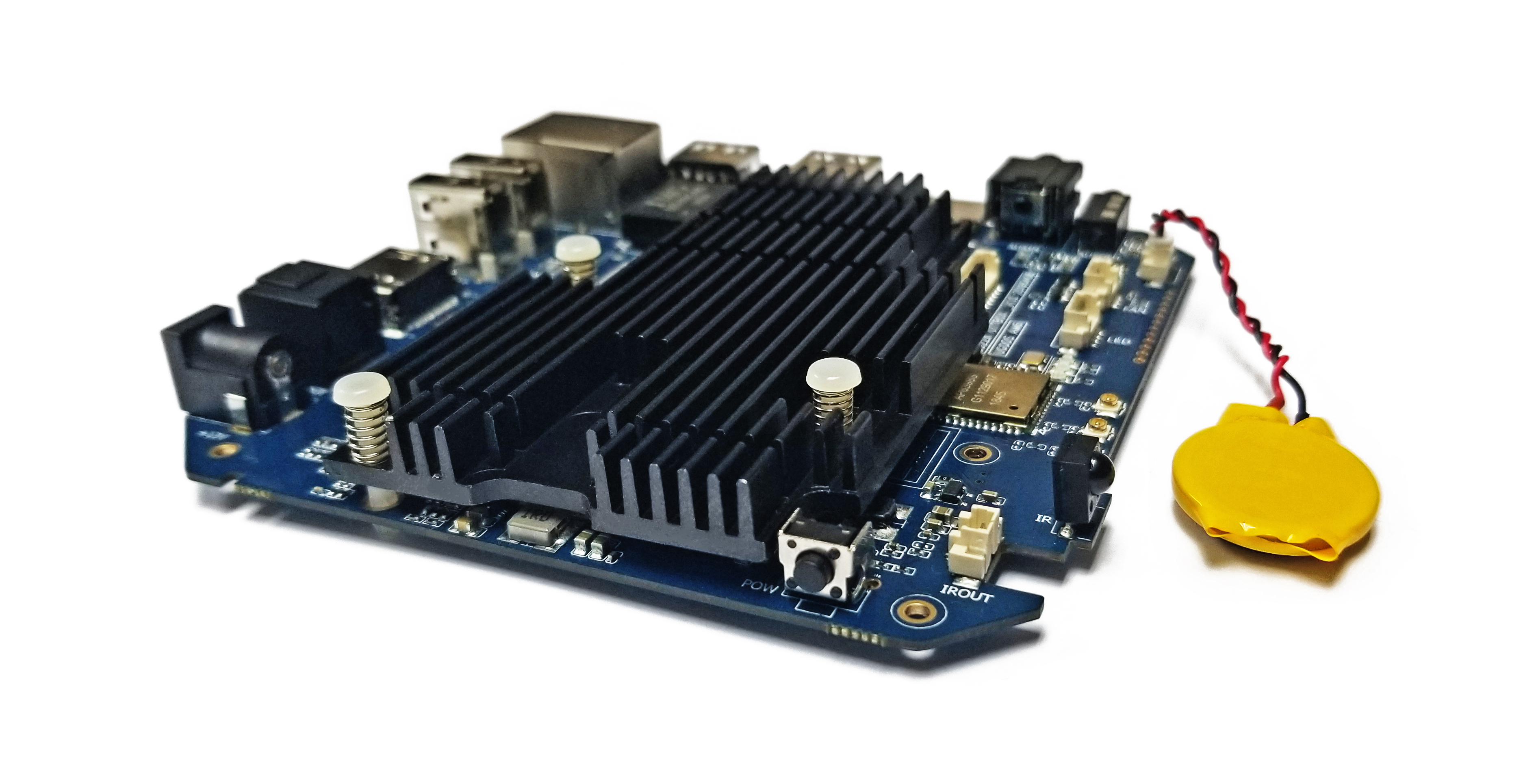

Final version of PCBA had small changes. Stress tests showed that combination of metal housing and heatsink is enough to hold appropriate temperature even during overload tasks. Previous PCBA version will be available for OEM orders, if devices will face some extreme working conditions. In addition, we set up a battery connector to save current time and other system data.

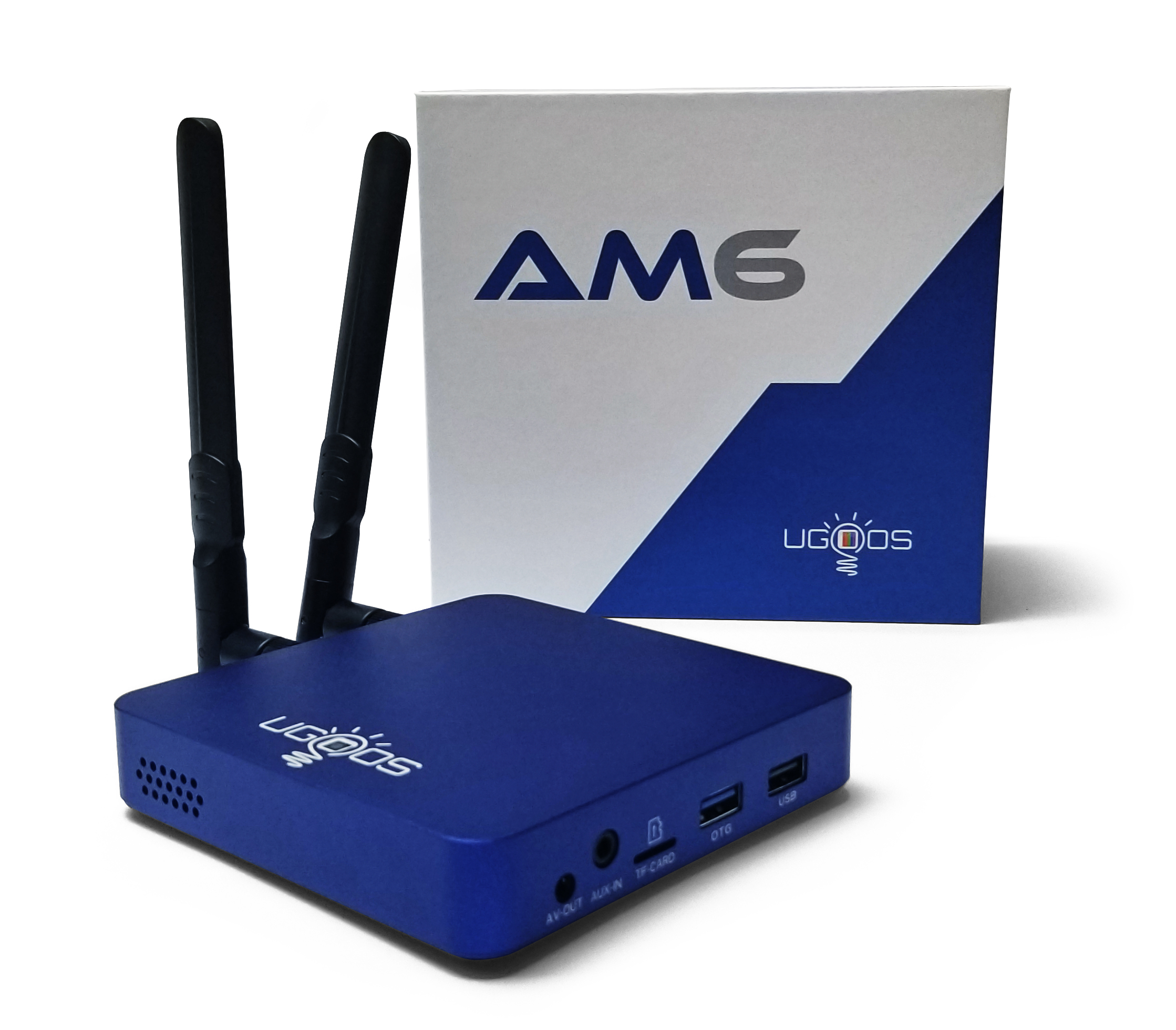

Packing box looks about the same and continues design line of Ugoos AM3, so housing does. Basically, it is the same but a little bit bigger housing with extra ports and effective ventilation. Rubber legs provide air flow under the lower lid and perforation on the front panel provides access for IR signal and additional air. Blue housing will be available for OEM orders, but actual box looks like this:

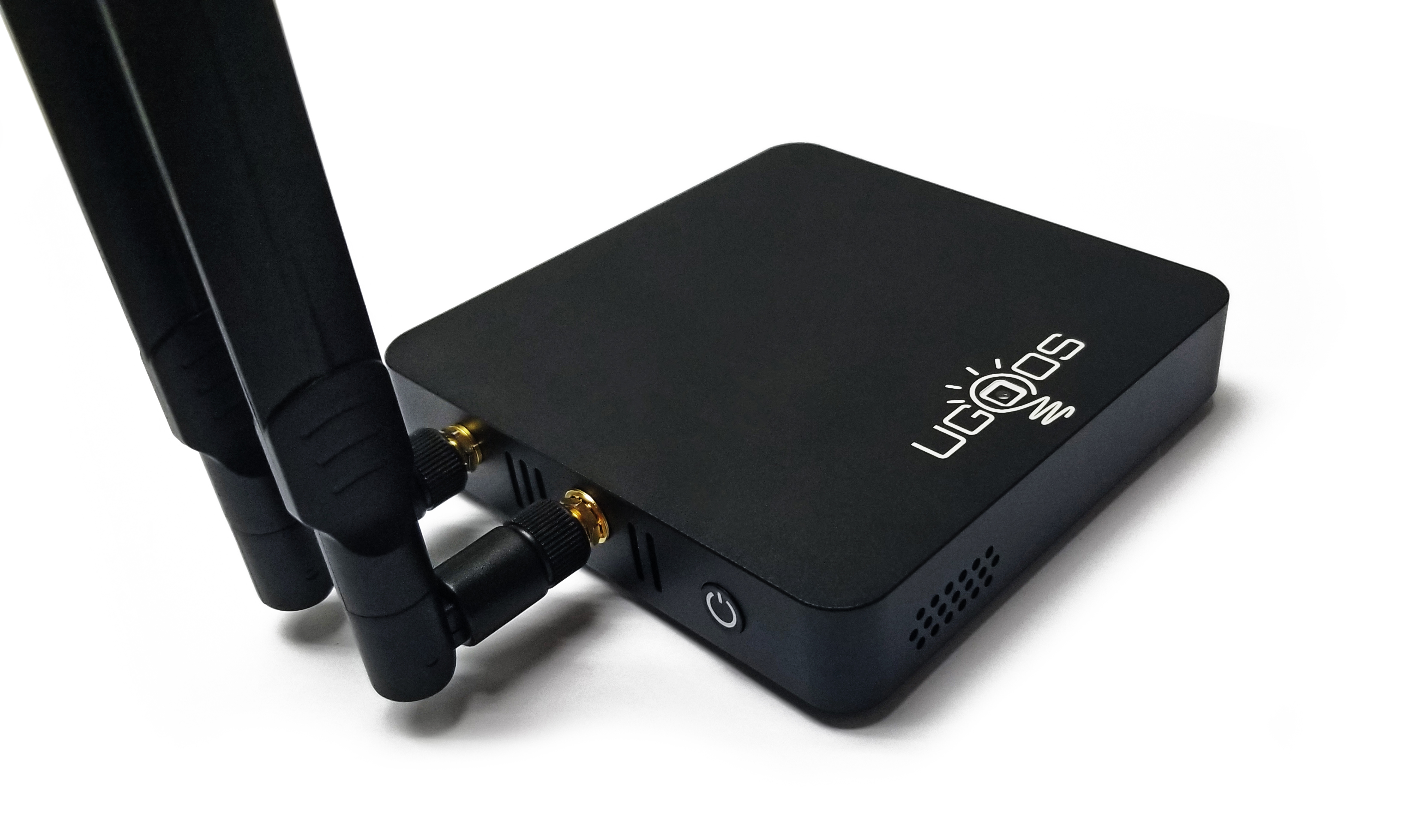

Ugoos AM6 final look. Device looks classic and continues the line of Ugoos Brand Products. Most noticeable distinctive feature is two WiFi MIMO antennas placed on the left side of TV Box. Other sides ports configuration is pretty standard: 1 USB 3.0, 1 USB 2.0, SD card slot AV port and AUX IN on the right side, another 2 USB 2.0, LAN port, HDMI 2.0, SPDIF port and DC jack on the tail side.

The first bunch of devices will be very soon. Keep in touch for more details. Detailed specification and additional materials are in Ugoos AM6 product page.
